NFPA Mount Accessories

NFPA Mount Accessories

All pneumatic cylinder families

nfparodclevis.jpgnfparodeye.jpgnfparodstud.jpgnfpaclevisbracket.jpgnfpaeyebracket.jpgnfpapivotpin.jpg

Bore
Rod Clevis
Clevis Pins
without circlips


Clevis Pins
with circlips

Rod Eye
Rod Alignment
Coupler
Rod Stud



Rear Clevis Bracket

NFPA MP1

Rear Clevis Bracket
NFPA MP2

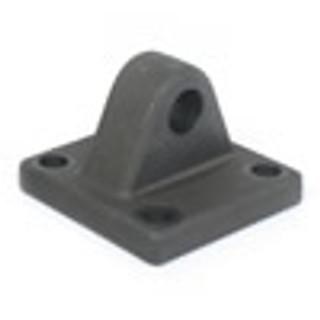

Rear Eye Bracket
NFPA MP4
1-1/2"
7/16-20 Thread BDC-05 BDP-05G BDP-05G-Assy  BDE-05 437F   BMP1-15-T ** BMP2-15-T ** BMP4-15-T **
3/4-16 Thread BDC-07 BDP-07G BDP-07G-Assy  BDE-07 750F
2"
7/16-20 Thread BDC-05 BDP-05G BDP-05G-Assy  BDE-05 437F   BMP1-2-T ** BMP2-2-T ** BMP4-2-T **
3/4-16 Thread BDC-07 BDP-07G BDP-07G-Assy  BDE-07 750F
2-1/2"
7/16-20 Thread BDC-05 BDP-05G BDP-05G-Assy  BDE-05 437F   BMP1-25-T ** BMP2-25-T **  BMP4-25-T **
3/4-16 Thread BDC-07 BDP-07G BDP-07G-Assy  BDE-07 750F
3-1/4"
3/4-16 Thread BDC-07 BDP-07G BDP-07G-Assy  BDE-07 750F   BMP1-32-T ** BMP2-32-T ** BMP4-32-T **
1-14 Thread BDC-10 BDP-10G BDP-10G-Assy  BDE-10 1000F
4"
3/4-16 Thread BDC-07 BDP-07G BDP-07G-Assy  BDE-07 750F   BMP1-4-T ** BMP2-4-T ** BMP4-4-T **
1-14 Thread BDC-10 BDP-10G BDP-10G-Assy  BDE-10 1000F
5"
3/4-16 Thread BDC-07 BDP-07G BDP-07G-Assy  BDE-07 750F   BMP1-5-T ** BMP2-5-T **
1-14 Thread BDC-10 BDP-10G BDP-10G-Assy  BDE-10 1000F
6"
1-14 Thread BDC-10 BDP-10G BDP-10G-Assy  BDE-10 1000F   BMP1-6-T ** BMP2-6-T **
1-1/4-12 thread BDC-13 BDP-13G BDP-13G-Assy  BDE-13 1250F
8"
1-14 thread BDC-10 BDP-10G BDP-10G-Assy  BDE-10 1000F
1-1/4-12 thread  BDC-13 BDP-13G BDP-13G-Assy  BDE-13 1250F

** Remove "T" for through Holes in Mounting Bracket

!
