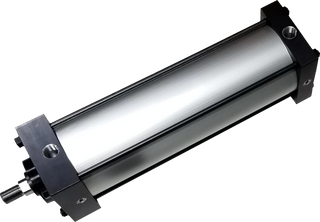

NFPA MP3 Mount

 Climax® N Series Catalog Download

Common Bores and Strokes produced. Please note, we produce to order, so all strokes are considered standard for us.
Select the model number to order or search by specific bore

 NFPA Mounting Accessories

Double Acting, Single rod, Non-Magnetic piston, Non-cushioned

Bore X Stroke	1"	2"	3"	4"	5"	6"	7"	8"	9"	10"
1-1/2"	N1.5-.625P3-01A-0311-SM1NA	N1.5-.625P3-02A-0311-SM1NA	N1.5-.625P3-03A-0311-SM1NA	N1.5-.625P3-04A-0311-SM1NA	N1.5-.625P3-05A-0311-SM1NA	N1.5-.625P3-06A-0311-SM1NA	N1.5-.625P3-07A-0311-SM1NA	N1.5-.625P3-08A-0311-SM1NA	N1.5-.625P3-09A-0311-SM1NA	N1.5-.625P3-10A-0311-SM1NA
2"	N2.0-.625P3-01A-0311-SM1NA	N2.0-.625P3-02A-0311-SM1NA	N2.0-.625P3-03A-0311-SM1NA	N2.0-.625P3-04A-0311-SM1NA	N2.0-.625P3-05A-0311-SM1NA	N2.0-.625P3-06A-0311-SM1NA	N2.0-.625P3-07A-0311-SM1NA	N2.0-.625P3-08A-0311-SM1NA	N2.0-.625P3-09A-0311-SM1NA	N2.0-.625P3-10A-0311-SM1NA
2-1/2"	N2.5-.625P3-01A-0311-SM1NA	N2.5-.625P3-02A-0311-SM1NA	N2.5-.625P3-03A-0311-SM1NA	N2.5-.625P3-04A-0311-SM1NA	N2.5-.625P3-05A-0311-SM1NA	N2.5-.625P3-06A-0311-SM1NA	N2.5-.625P3-07A-0311-SM1NA	N2.5-.625P3-08A-0311-SM1NA	N2.5-.625P3-09A-0311-SM1NA	N2.5-.625P3-10A-0311-SM1NA
3-1/4"	N3.25-1.0P3-01A-0411-SM1NA	N3.25-1.0P3-02A-0411-SM1NA	N3.25-1.0P3-03A-0411-SM1NA	N3.25-1.0P3-04A-0411-SM1NA	N3.25-1.0P3-05A-0411-SM1NA	N3.25-1.0P3-06A-0411-SM1NA	N3.25-1.0P3-07A-0411-SM1NA	N3.25-1.0P3-08A-0411-SM1NA	N3.25-1.0P3-09A-0411-SM1NA	N3.25-1.0P3-10A-0411-SM1NA
4"	N4.0-1.0P3-01A-0411-SM1NA	N4.0-1.0P3-02A-0411-SM1NA	N4.0-1.0P3-03A-0411-SM1NA	N4.0-1.0P3-04A-0411-SM1NA	N4.0-1.0P3-05A-0411-SM1NA	N4.0-1.0P3-06A-0411-SM1NA	N4.0-1.0P3-07A-0411-SM1NA	N4.0-1.0P3-08A-0411-SM1NA	N4.0-1.0P3-09A-0411-SM1NA	N4.0-1.0P3-10A-0411-SM1NA
5"	N5.0-1.0P3-01A-0411-SM1NA	N5.0-1.0P3-02A-0411-SM1NA	N5.0-1.0P3-03A-0411-SM1NA	N5.0-1.0P3-04A-0411-SM1NA	N5.0-1.0P3-05A-0411-SM1NA	N5.0-1.0P3-06A-0411-SM1NA	N5.0-1.0P3-07A-0411-SM1NA	N5.0-1.0P3-08A-0411-SM1NA	N5.0-1.0P3-09A-0411-SM1NA	N5.0-1.0P3-10A-0411-SM1NA
6"	N6.0-1.375P3-01A-0511-SM1NA	N6.0-1.375P3-02A-0511-SM1NA	N6.0-1.375P3-03A-0511-SM1NA	N6.0-1.375P3-04A-0511-SM1NA	N6.0-1.375P3-05A-0511-SM1NA	N6.0-1.375P3-06A-0511-SM1NA	N6.0-1.375P3-07A-0511-SM1NA	N6.0-1.375P3-08A-0511-SM1NA	N6.0-1.375P3-09A-0511-SM1NA	N6.0-1.375P3-10A-0511-SM1NA
8"	N8.0-1.375P3-01A-0511-SM1NA	N8.0-1.375P3-02A-0511-SM1NA	N8.0-1.375P3-03A-0511-SM1NA	N8.0-1.375P3-04A-0511-SM1NA	N8.0-1.375P3-05A-0511-SM1NA	N8.0-1.375P3-06A-0511-SM1NA	N8.0-1.375P3-07A-0511-SM1NA	N8.0-1.375P3-08A-0511-SM1NA	N8.0-1.375P3-09A-0511-SM1NA	N8.0-1.375P3-10A-0511-SM1NA



 Double Acting, Single rod, Magnetic piston, Adjustable cushions both ends

Bore X Stroke	1"	2"	3"	4"	5"	6"	7"	8"	9"	10"
1-1/2"	N1.5-.625P3-01A-0311-SM1RC	N1.5-.625P3-02A-0311-SM1RC	N1.5-.625P3-03A-0311-SM1RC	N1.5-.625P3-04A-0311-SM1RC	N1.5-.625P3-05A-0311-SM1RC	N1.5-.625P3-06A-0311-SM1RC	N1.5-.625P3-07A-0311-SM1RC	N1.5-.625P3-08A-0311-SM1RC	N1.5-.625P3-09A-0311-SM1RC	N1.5-.625P3-10A-0311-SM1RC
2"	N2.0-.625P3-01A-0311-SM1RC	N2.0-.625P3-02A-0311-SM1RC	N2.0-.625P3-03A-0311-SM1RC	N2.0-.625P3-04A-0311-SM1RC	N2.0-.625P3-05A-0311-SM1RC	N2.0-.625P3-06A-0311-SM1RC	N2.0-.625P3-07A-0311-SM1RC	N2.0-.625P3-08A-0311-SM1RC	N2.0-.625P3-09A-0311-SM1RC	N2.0-.625P3-10A-0311-SM1RC
2-1/2"	N2.5-.625P3-01A-0311-SM1RC	N2.5-.625P3-02A-0311-SM1RC	N2.5-.625P3-03A-0311-SM1RC	N2.5-.625P3-04A-0311-SM1RC	N2.5-.625P3-05A-0311-SM1RC	N2.5-.625P3-06A-0311-SM1RC	N2.5-.625P3-07A-0311-SM1RC	N2.5-.625P3-08A-0311-SM1RC	N2.5-.625P3-09A-0311-SM1RC	N2.5-.625P3-10A-0311-SM1RC
3-1/4"	N3.25-1.0P3-01A-0411-SM1RC	N3.25-1.0P3-02A-0411-SM1RC	N3.25-1.0P3-03A-0411-SM1RC	N3.25-1.0P3-04A-0411-SM1RC	N3.25-1.0P3-05A-0411-SM1RC	N3.25-1.0P3-06A-0411-SM1RC	N3.25-1.0P3-07A-0411-SM1RC	N3.25-1.0P3-08A-0411-SM1RC	N3.25-1.0P3-09A-0411-SM1RC	N3.25-1.0P3-10A-0411-SM1RC
4"	N4.0-1.0P3-01A-0411-SM1RC	N4.0-1.0P3-02A-0411-SM1RC	N4.0-1.0P3-03A-0411-SM1RC	N4.0-1.0P3-04A-0411-SM1RC	N4.0-1.0P3-05A-0411-SM1RC	N4.0-1.0P3-06A-0411-SM1RC	N4.0-1.0P3-07A-0411-SM1RC	N4.0-1.0P3-08A-0411-SM1RC	N4.0-1.0P3-09A-0411-SM1RC	N4.0-1.0P3-10A-0411-SM1RC
5"	N5.0-1.0P3-01A-0411-SM1RC	N5.0-1.0P3-02A-0411-SM1RC	N5.0-1.0P3-03A-0411-SM1RC	N5.0-1.0P3-04A-0411-SM1RC	N5.0-1.0P3-05A-0411-SM1RC	N5.0-1.0P3-06A-0411-SM1RC	N5.0-1.0P3-07A-0411-SM1RC	N5.0-1.0P3-08A-0411-SM1RC	N5.0-1.0P3-09A-0411-SM1RC	N5.0-1.0P3-10A-0411-SM1RC
6"	N6.0-1.375P3-01A-0511-SM1RC	N6.0-1.375P3-02A-0511-SM1RC	N6.0-1.375P3-03A-0511-SM1RC	N6.0-1.375P3-04A-0511-SM1RC	N6.0-1.375P3-05A-0511-SM1RC	N6.0-1.375P3-06A-0511-SM1RC	N6.0-1.375P3-07A-0511-SM1RC	N6.0-1.375P3-08A-0511-SM1RC	N6.0-1.375P3-09A-0511-SM1RC	N6.0-1.375P3-10A-0511-SM1RC
8"	N8.0-1.375P3-01A-0511-SM1RC	N8.0-1.375P3-02A-0511-SM1RC	N8.0-1.375P3-03A-0511-SM1RC	N8.0-1.375P3-04A-0511-SM1RC	N8.0-1.375P3-05A-0511-SM1RC	N8.0-1.375P3-06A-0511-SM1RC	N8.0-1.375P3-07A-0511-SM1RC	N8.0-1.375P3-08A-0511-SM1RC	N8.0-1.375P3-09A-0511-SM1RC	N8.0-1.375P3-10A-0511-SM1RC
